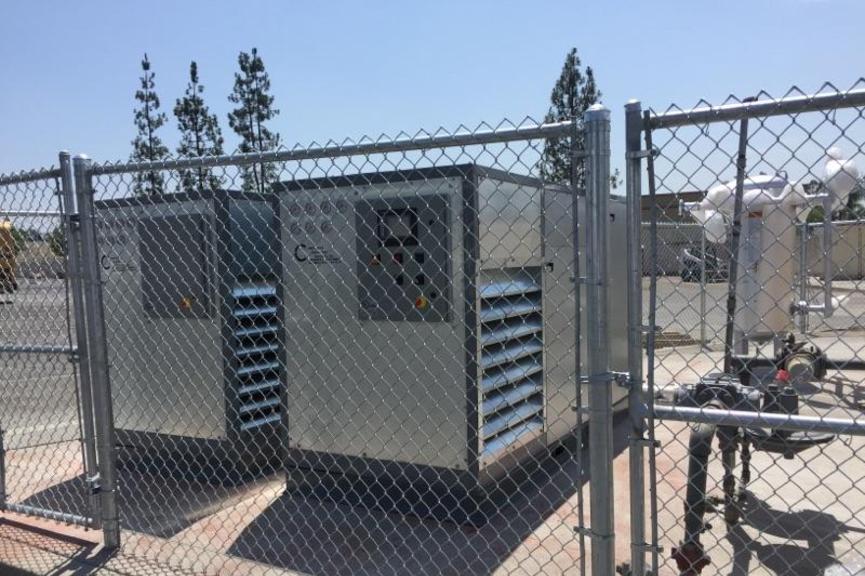

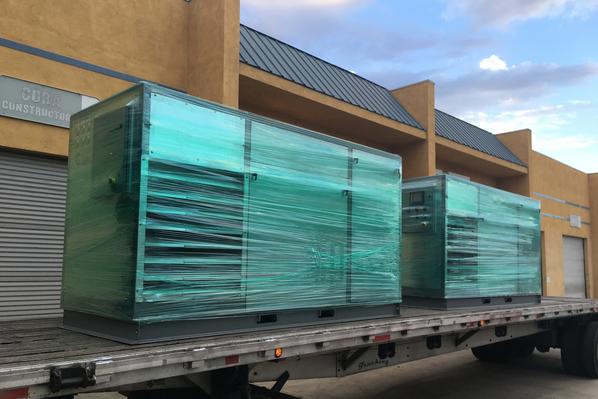

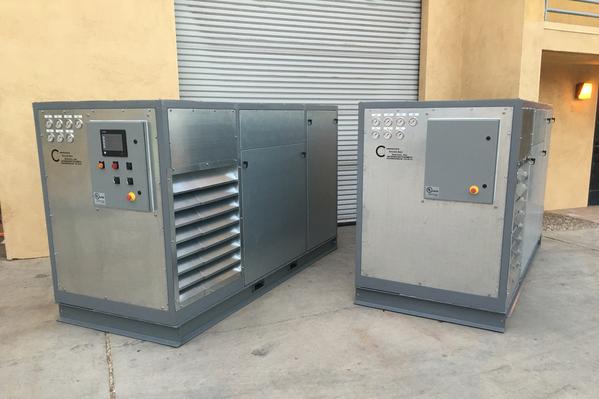

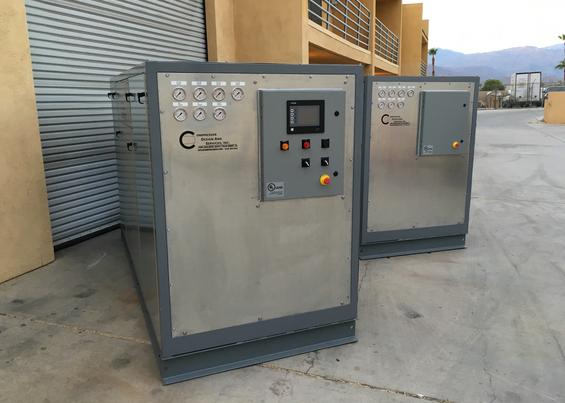

Enclosed Duplex

We work with all Compressor Manufacturers

We have built, maintained, and done the controls for every compressor manufacturer. Currently, in house, we provide the W-120 Gardner Denver package as our system of choice. However, we are not limited and will provide whatever system the client requests.

CALL US  (442) 600-2444

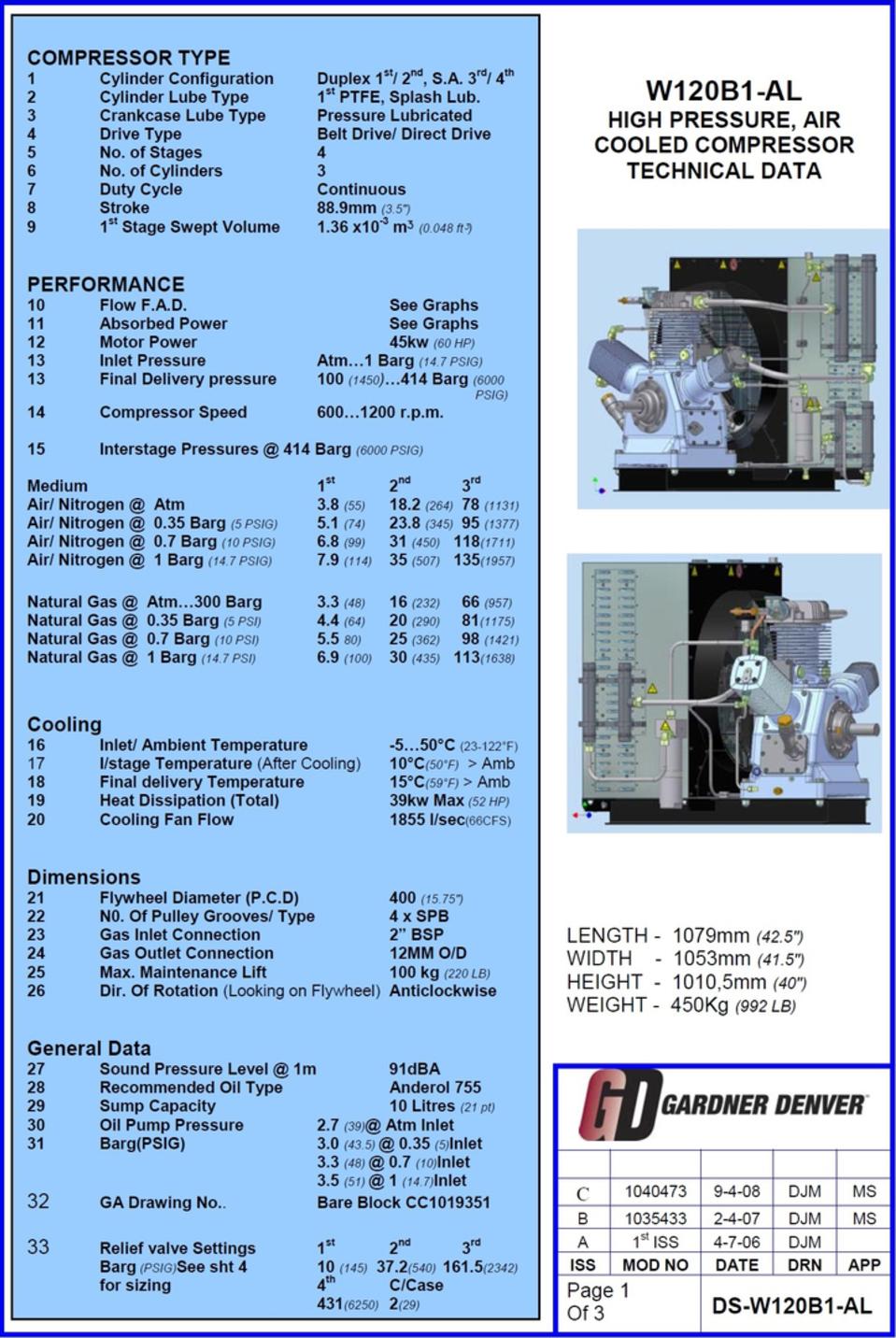

W-120 50hp Compressor Packages

Compressor Packages designed specifically for the needs of your site.

EMAIL US  Info@Compressords.com

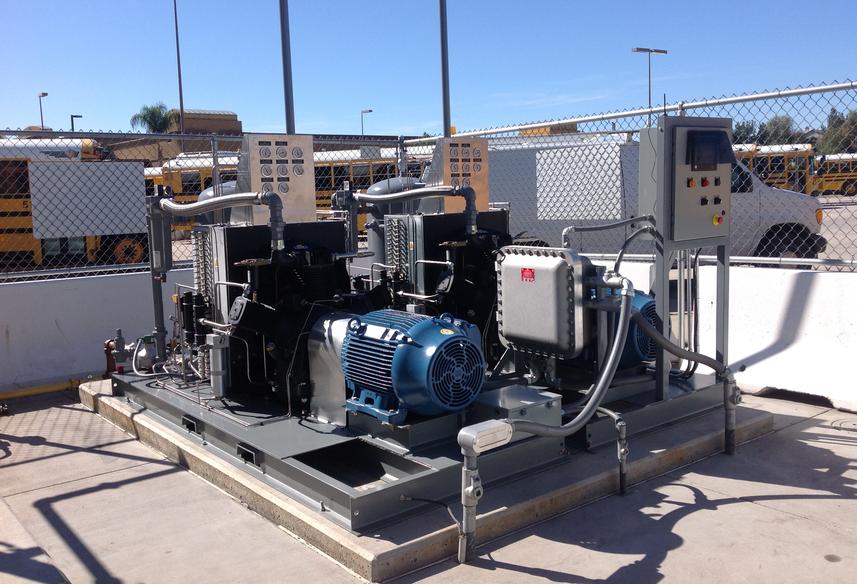

Open Air Duplex

Overview:
CNG-W120/50 duplex, gas compressors. Compressor is pressure lubricated four stage block constructed with large forced air cooling for each stage as well the block itself. Each compressor stage cooler discharge is fitted with a separator piped to a common unloading valve. Each compressor will include its own skid, ASME 60 gallon vapor recovery vessel, and inlet filtration. All stage pressures will be indicated by gauges on a common panel mounted on the individual skid. The two compressors will share a common control panel and starter panel. Operation of the system is start stop control. The system will be rated for outdoor service and will comply with NEC, Class 1 Division 2 Group D service, as well comply with NFPA 52. All electrical panels will comply and be marked with a UL stamp certifying safe in Hazardous Locations.

Compressor:
Gas: Natural Gas
Inlet: 5psig to 15psig
Outlet: 3600 – 5000psig, 3600psig typical
RPM: 1200
Flow @ rated suction: 77 scfm each (50hp)
BHP: 50
Stages: 4
Crankcase Lubrication: Oil pump with spin-on filter
Cooling: Air cooled
Drive: Direct drive via flexible coupling
Motor: 50hp 1500rpm, TEFC premium efficiency.
Site Electrical Service: 460/3/60 100 amp service required, 50hp

​

Additional Systems Features:

• Contact provided for remote monitoring of system controls
• Inlet isolation valve with threaded inlet connection to the vapor recovery vessel
• Inlet filtration with inlet shutoff device and regulator
• Gas tight relief valves, piped to common stack
• Crankcase breather piped back to suction
• Compressor discharge check valve
• Oil pressure gauge located with stage pressures on common panel
• Low oil pressure fault and warning
• Oil level sight glass
• Auto condensate drain connected to each stage separator
• Each stage fitted with pressure gauge
• Discharge connection port isolated with ball valve
• Discharge filtration with pressure maintaining valve
• Flexible pipe connections as needed
• All control tubing is stainless steel
